About This Kit

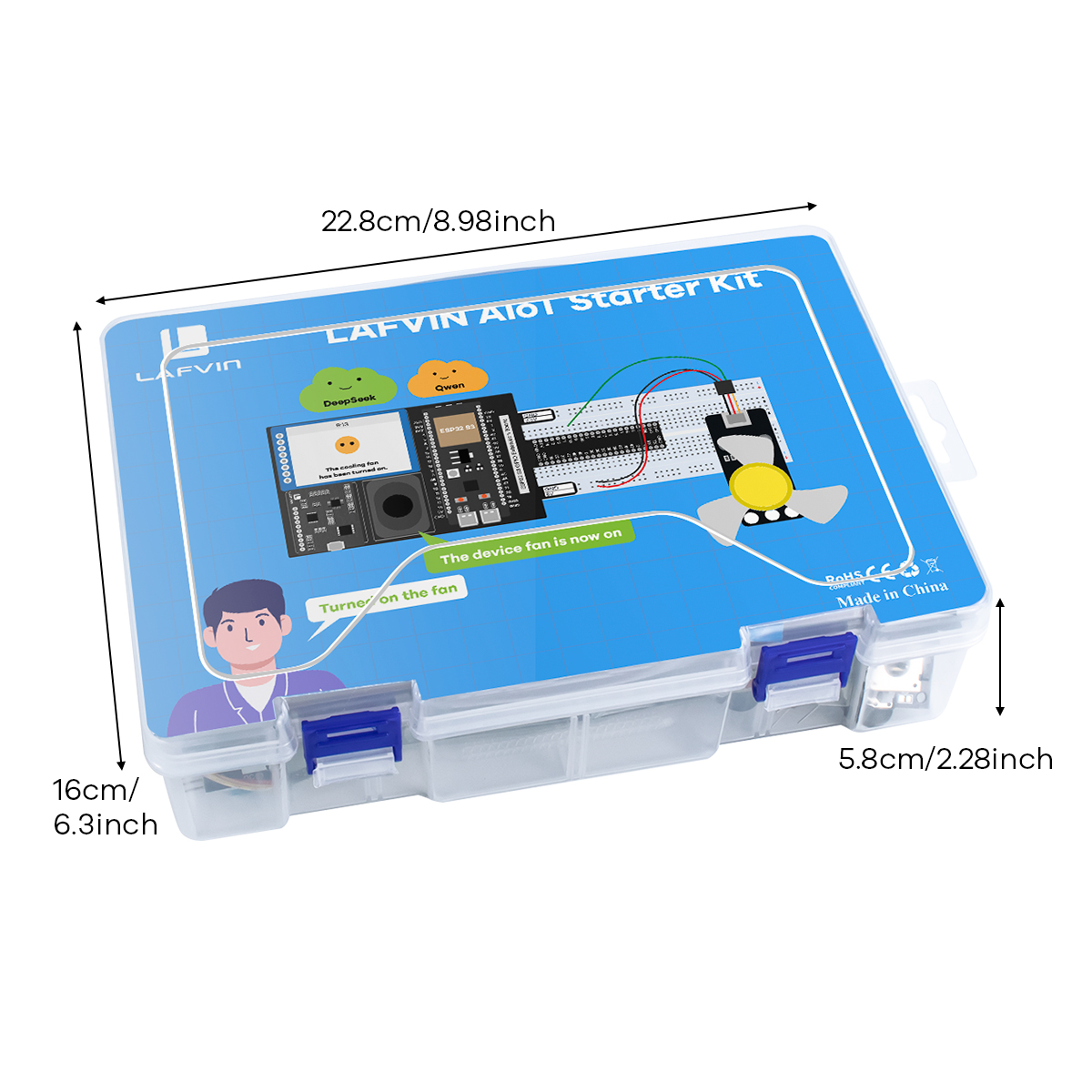

LAFVIN AIoT Starter Kit
Project Overview
The LAFVIN AIoT Starter Kit is built on the open-source xiaozhi-esp32 project. It uses the ESP32-S3 as the main controller and applies the MCP (Model Context Protocol) to voice-driven hardware control.
With natural language commands, users can control lights, read sensors, and trigger connected devices. The kit is suitable for beginners learning IoT and AI workflows, and it also provides a practical starting point for prototyping and secondary development.
Key Features
AI-Native Control: The backend can discover and invoke device tools through MCP.
Voice Interaction: Use natural language commands such as
Hi, ESP, turn the light red.Multi-Module Starter Kit: Includes lighting, sensing, motor, fan, and relay modules.
Beginner-Friendly Setup: Supports browser-based flashing and guided backend binding.
Open Source Foundation: Built on the mature xiaozhi-esp32 ecosystem.
Main Functions
Smart Lighting
RGB LED color control and breathing effects
WS2812 LED strip animation modes such as police mode and rainbow chase
Environmental Monitoring
DHT11 temperature and humidity sensing
Rain and soil moisture detection
Smart Control
Servo angle control
Fan on and off control
Two-channel relay control
Application Scenarios
Smart Home Control Center: Environmental monitoring, lighting control, and device integration
Educational Experiment Platform: IoT principles, AI interaction, and sensor application demos
Maker Development Tool: Rapid prototyping for AIoT projects
Agricultural IoT: Soil monitoring and automation experiments
Office Environment Management: Environmental monitoring and device status demos
Hardware Components
Main Controller Module
Component Name |
Quantity |
Function Description |
|---|---|---|
ESP32-S3 Development Board |
1 |
Main controller with Wi-Fi and Bluetooth support for AI voice processing |
AI Chatbot IoT Shield & Breadboard |
1 |
Hardware connection and expansion platform |
Sensor Modules
Component Name |
Quantity |
Function Description |
|---|---|---|
DHT11 Temperature & Humidity Sensor |
1 |
Environmental temperature and humidity detection |
Rain Sensor |
1 |
Water detection for weather and automation demos |
Soil Moisture Sensor |
1 |
Soil moisture detection for irrigation experiments |
Actuator Modules
Component Name |
Quantity |
Function Description |
|---|---|---|
RGB LED Module |
1 |
Tri-color LED with adjustable colors and breathing light effects |
WS2812 Smart LED Strip |
1 |
Programmable color LED strip with multiple lighting modes |
SG90 Servo Motor |
1 |
Precision angle control from 0 to 180 degrees |
5V DC Fan |
1 |
Basic airflow control module |
2-Channel Relay Module |
1 |
External device switching module |
Connection Accessories
Accessory Name |
Quantity |
Purpose Description |
|---|---|---|
Dupont Jumper Wires |
Multiple |
Signal connection between modules |
USB Data Cable |
1 |
Firmware flashing and basic power connection |
Power Adapter |
1 |
Included external power supply for stable full-system operation |
Software Resources
Software Component |
Description |
|---|---|
Pre-compiled Firmware |
ESP32 firmware with complete MCP tools |
Xiaozhi Backend Service |
Provides voice interaction, device binding, and MCP request handling |
Development Toolchain |
ESP-IDF example code |
Note
This kit is designed for education, demos, and development. Use the included external power adapter for stable full-module operation, and use a USB Type-C data cable for flashing.
