Hardware Introduction

This document provides a detailed introduction to the hardware components, functions, and usage methods of the ESP32-S3 AI Chatbot.

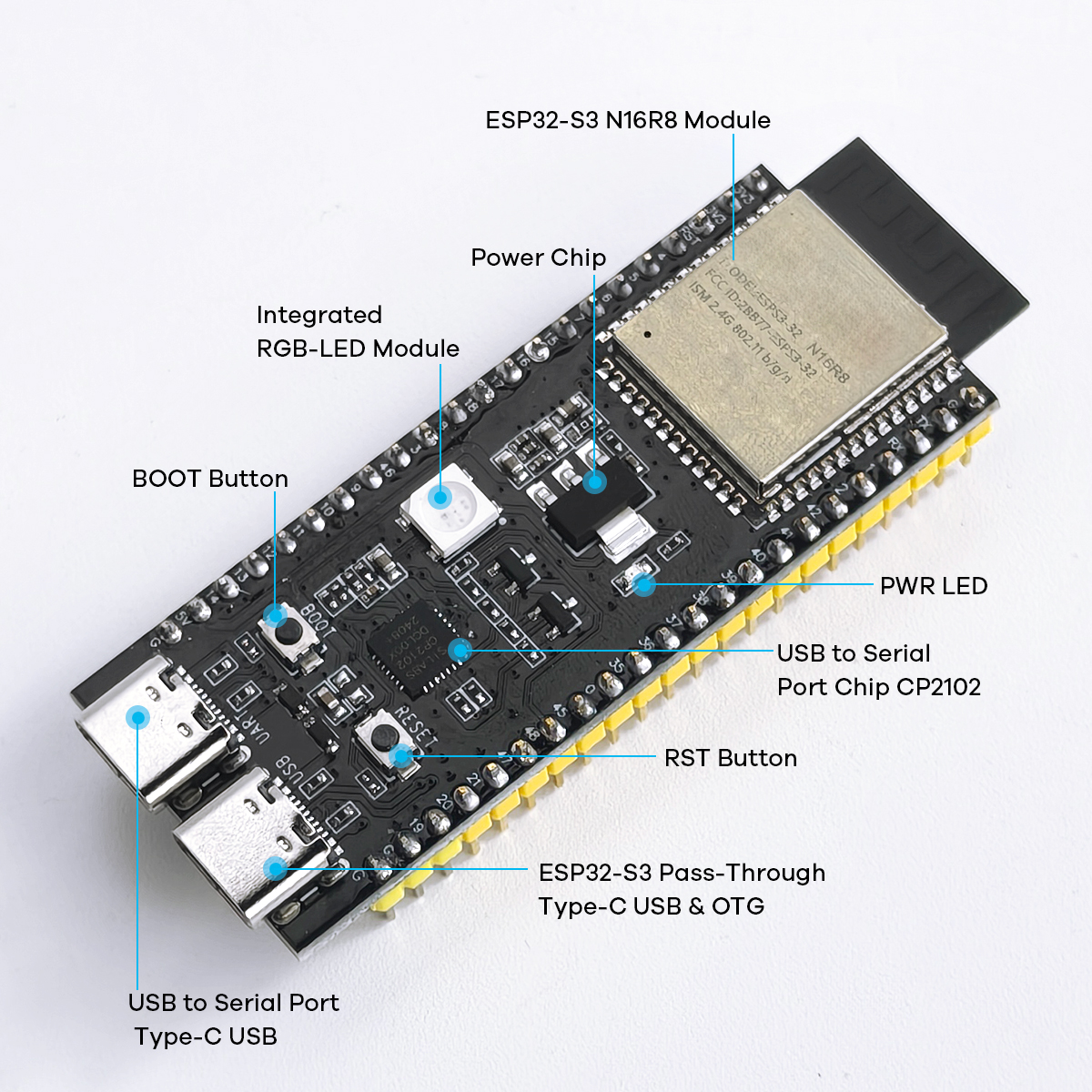

Main Controller - ESP32-S3

ESP32-S3 is the core processor of this project, providing powerful computing capabilities and rich interfaces.

../_images/esp32s3-2.jpg
../_images/esp32s3-3.jpg

Key Features

  • Dual-core Xtensa LX7 processor with a maximum frequency of 240MHz

  • Integrated Wi-Fi and Bluetooth dual-mode communication

  • Rich peripheral interfaces, supporting various communication protocols

  • Low power design, suitable for battery-powered applications

  • Built-in neural network accelerator, supporting local AI computation

Technical Specifications

Processor

Dual-core Xtensa LX7, frequency up to 240MHz

Memory

512KB SRAM, 8MB PSRAM

Storage

Supports up to 16MB Flash

Wi-Fi

IEEE 802.11 b/g/n, supports the 2.4 GHz band

Bluetooth

Bluetooth 5.0 and BLE

GPIO

Up to 45 programmable GPIOs

Interfaces

SPI, I2C, I2S, UART, USB OTG

Operating Voltage

3.0-3.6V

Operating Temperature

-40°C to +85°C

Display Module

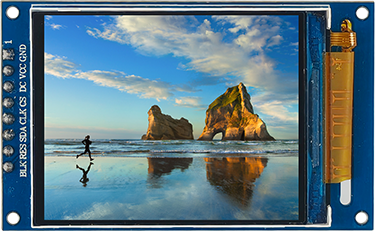

This project uses a 2.0-inch 240*320 SPI LCD display, based on the ST7789 controller, communicating with the ESP32-S3 via SPI interface.

../_images/lcd.png

Key Features

  • Resolution: 240*320 pixels

  • RGB color display

  • IPS panel, wide viewing angle, and good visibility

  • SPI interface, easy to connect

The display is mainly used for showing system status, message content, and interaction prompts.

LAFVIN Audio Codec Module

The LAFVIN AI Chatbot utilizes the LAFVIN Audio Codec Module, which supports voice input and output functions, enabling the device to perform voice interactions.

LAFVIN Audio Codec Module

Key Features

  • High Signal-to-Noise Ratio: Ensures clear and accurate sound pickup.

  • Built-in Digital Signal Processing (DSP): Enhances audio quality and performance.

  • I2S Interface: Directly outputs digital audio signals, compatible with microcontrollers and processors.

  • Dual Omnidirectional Microphones: Wide coverage for robust voice capture.

  • Sufficient Volume Output: Ensures clear audio playback even in noisy environments.

Buttons and Interaction

The device provides physical buttons for simple operations and control:

  1. The button connected to GPIO20 is for scrolling text upward

  2. The button connected to GPIO19 is for scrolling text downward

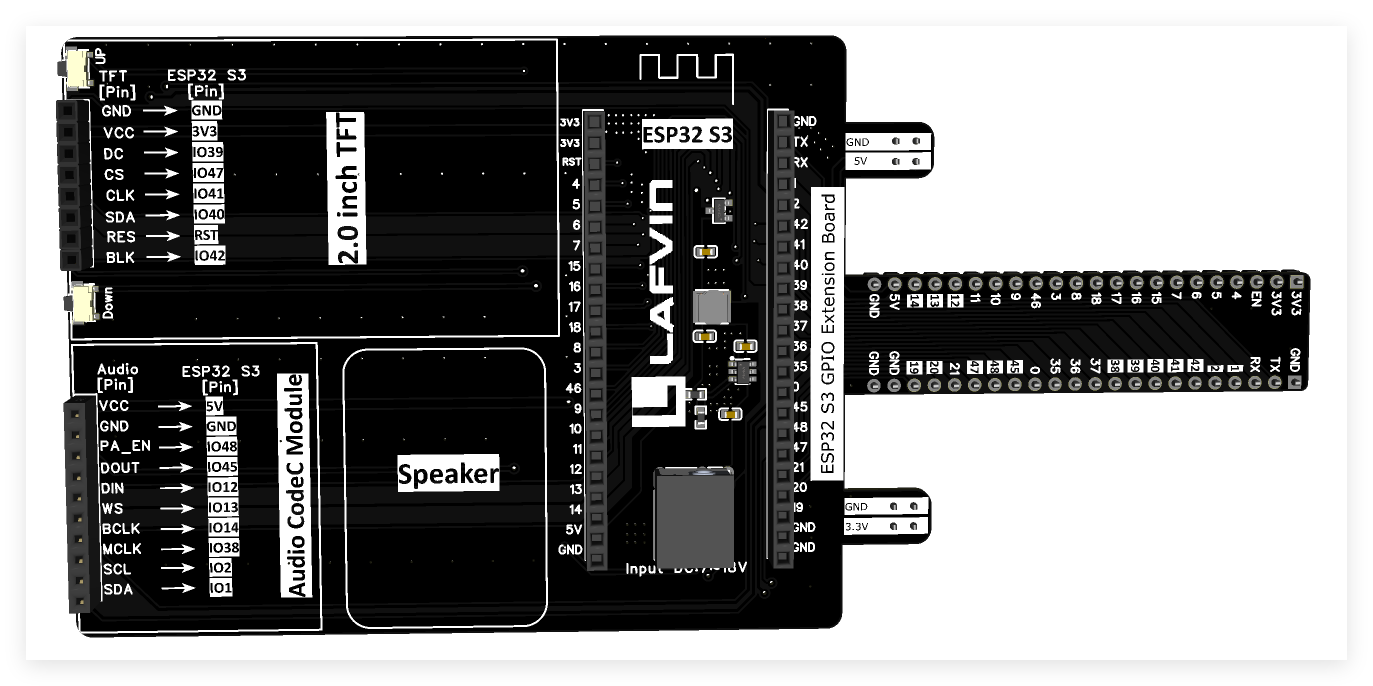

AI Chatbot Shield

The AI Chatbot Shield is an expansion board for the LAFVIN AI Chatbot, designed to simplify the wiring process and provide a plug-and-play solution for implementing AI Chatbot functionality.

../_images/exp.png

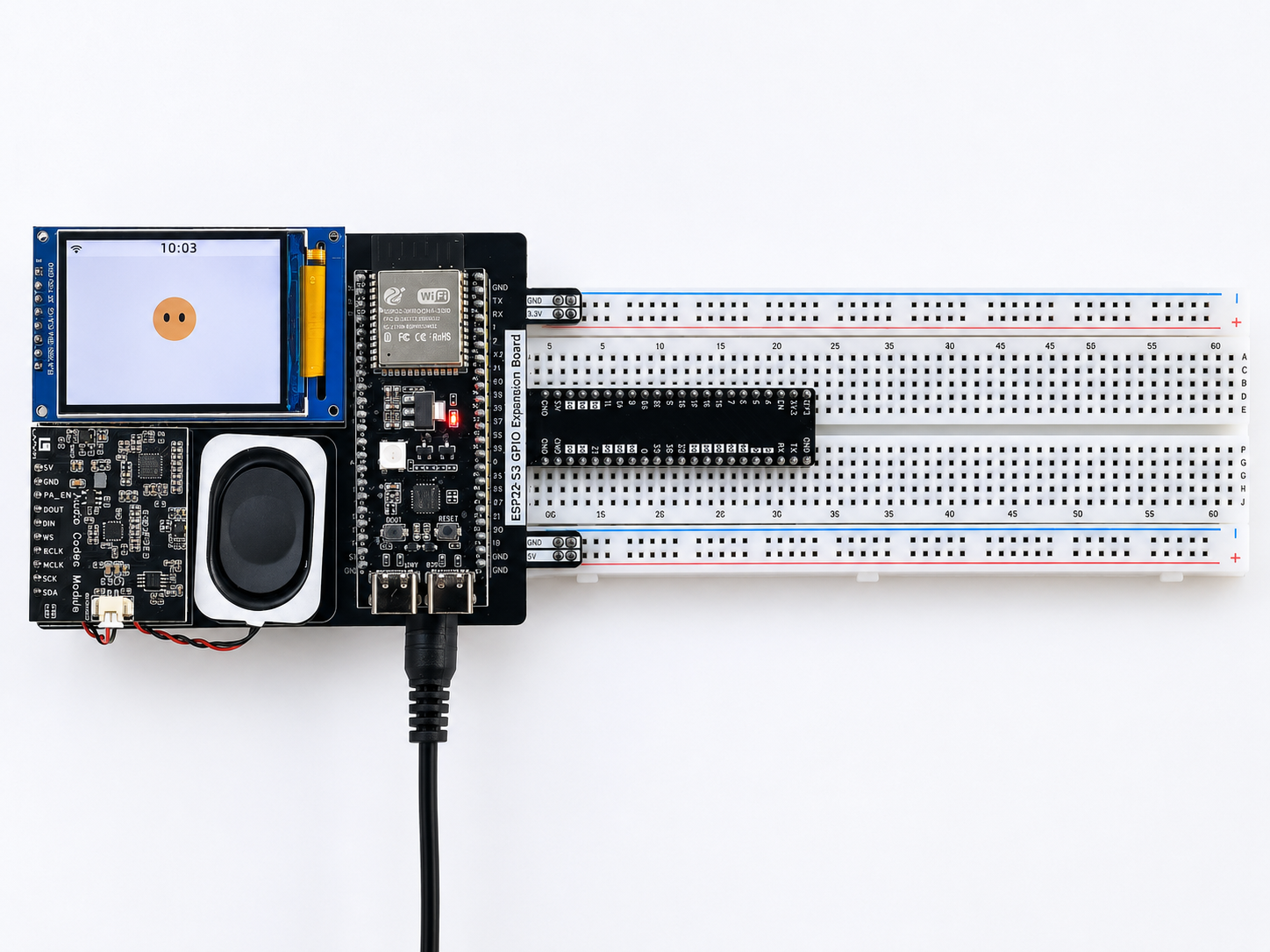

Hardware Connection Diagram

The following diagram shows how each hardware module is connected:

../_images/main.png
